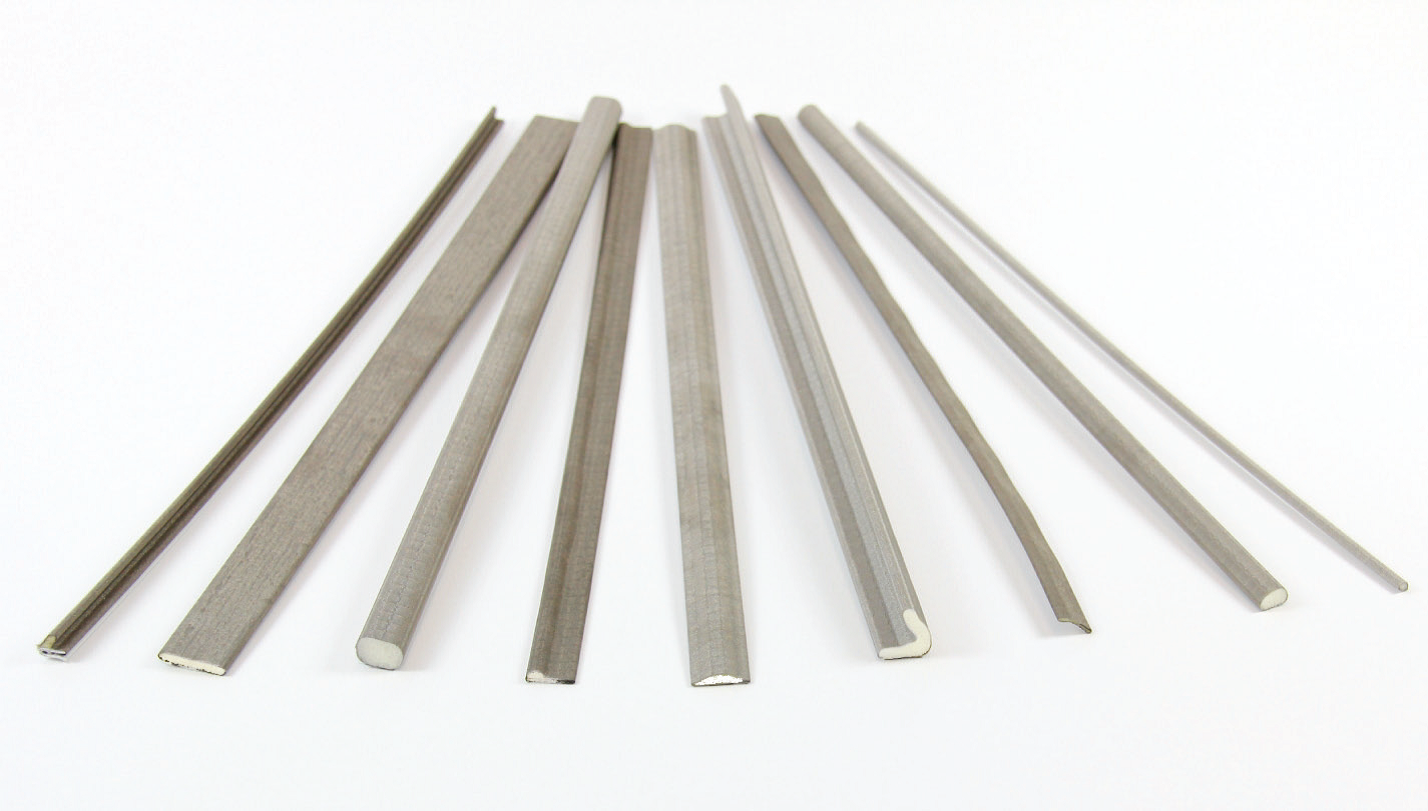

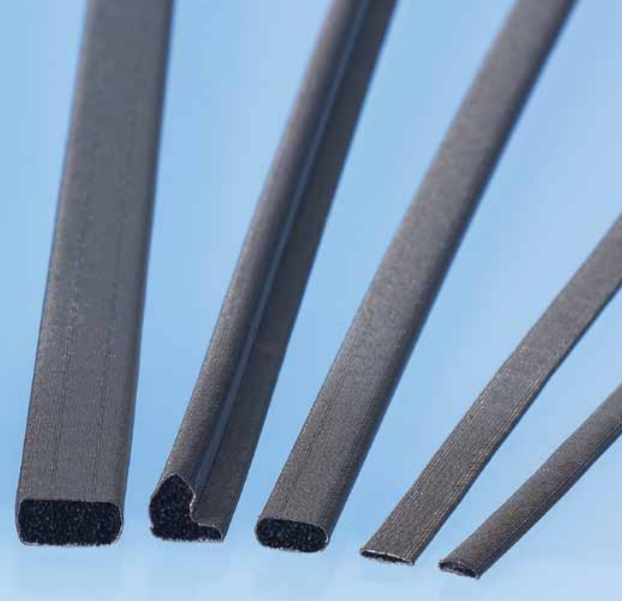

SOFT-SHIELD® 5000 Series gaskets offer a low cost and high performance EMI gasketing solution for commercial electronic systems. The high reliability conductive fabric over foam core construction provides a cost effective alternative to beryllium copper or stainless steel fingerstock EMI gaskets. Applications for these conductive fabric over urethane foam core gaskets include; commercial electronic enclosures, medical electronics and general industrial applications. The variety of available cross-section profiles allow for very low closure forces, thus offering a minimization of the number of necessary fasteners for easy, user friendly installation, without an effect to shielding effectiveness. Cut-to-length strips of gasket are self terminating thereby enhancing the reliability of the application. The urethane foam core has excellent compressibility making the gasket material especially attractive for thin-walled plastic enclosures. Gaskets are offered standard with a UL 94 V-0 flammability rating.

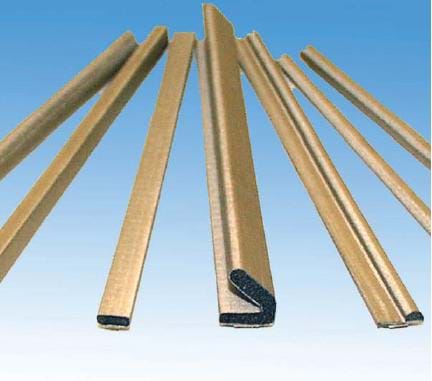

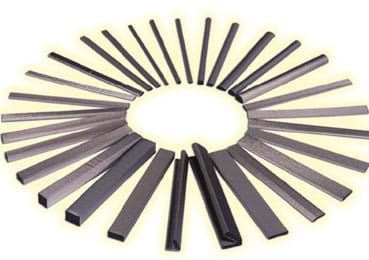

The SOFT-SHIELD® 3500 fabric over foam (FOF) product family is a group of low-closure force EMI/EMC gaskets. SS3500 offers a low cost/low closure force competitive solution for EMI shielding and electrical grounding in shear and compression. The SS3500 product family is comprised of conductive nickel plated copper polyester taffeta fabric wrapped around open cell urethan foam. This wrap around technology grounds the gasket from point to point, ultimately eliminating an EMI/EMC gap. SS3500 typically requires less then 1lb / in (0.175 / mm) closure force, making it effective for low closure force applications. SS3500 takes less than 15% compression set. This is less than most other FOF’s on the market resulting in reliable/repeatable shielding performance. SS3500 is an excellent alternative shielding solution to traditional spring finger type products. The SS3500 product family is one of the most versatile EMI FOF products offered to the market. Depending on mechanical and shielding requirements, the SS3500 can be made with different conductive jackets: • Nickel-plated copper taffeta • Nickel-plated copper rip-stop polyester

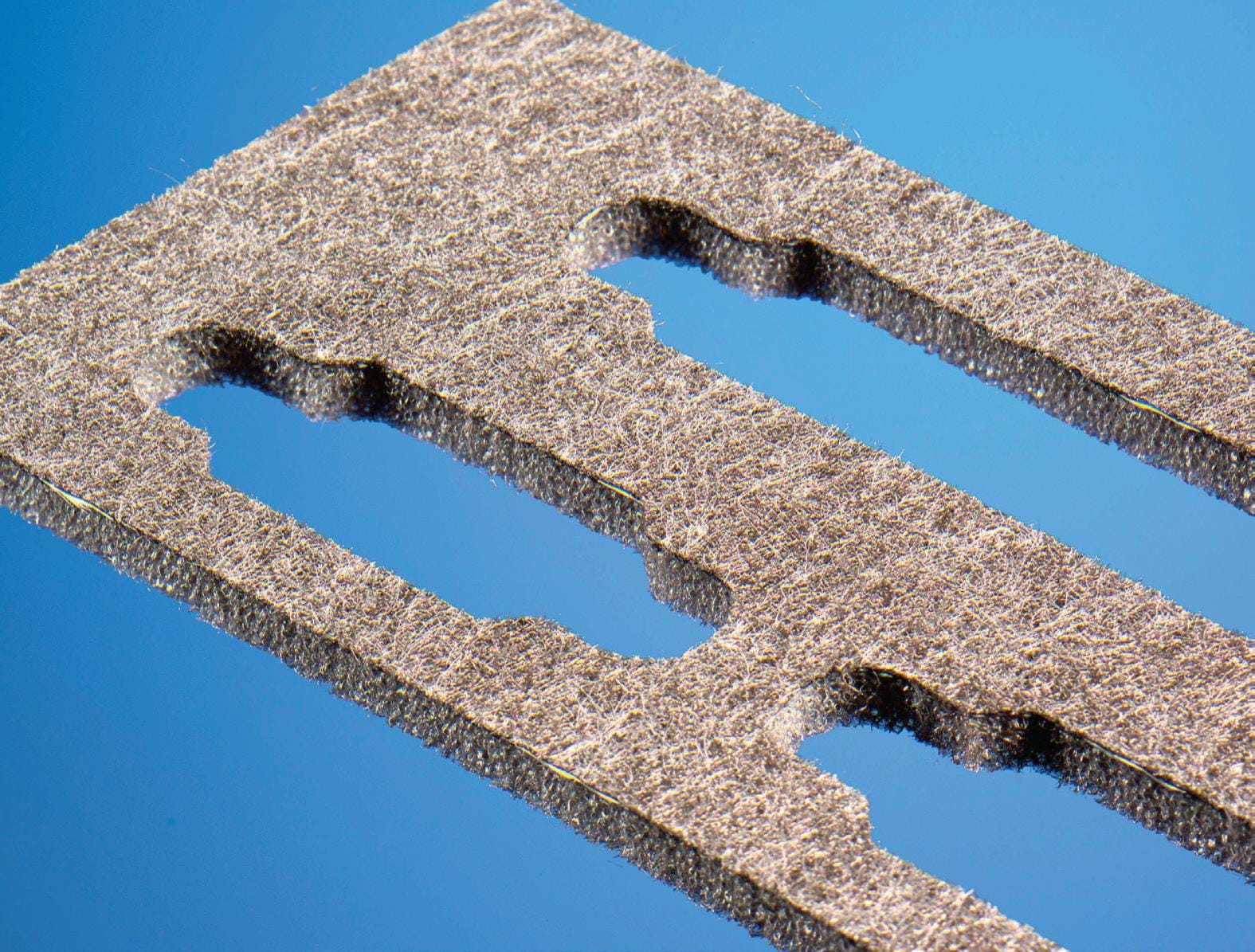

SOFT-SHIELD® 4850 represents the latest advancement in EMI shielding gaskets based on Multi-planar, Z-axis conductive foam technology. SOFT-SHIELD 4850 is based on the unique integration of electrically conductive silver-plated fibers into a low density urethane foam providing the basis for a performance driven cost effective EMI shielding solution. Through the optimization of conductive fiber construction, loading and dispersion within the foam matrix, SOFT-SHIELD 4850 provides superb Z-axis conductivity with extremely short ground paths. Since the integrity of the base foam is uncompromised, SOFT-SHIELD 4850 offers exceptional physical and mechanical properties. Offered in bulk roll form or custom die-cut shapes.

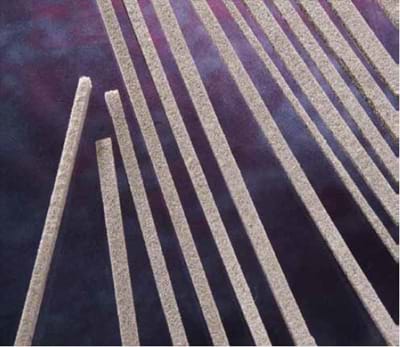

SOFT-SHIELD® 4850-STRIP multi-planar, Z-axis conductive strip gaskets are a new, and convenient form of the successful 4850 EMI sheet gasket. These strip gaskets provide EMI shielding in the range of 70-80dB, along with lower closure force, lower compression set and up to 20% lower cost than fabric-over-foam gaskets.

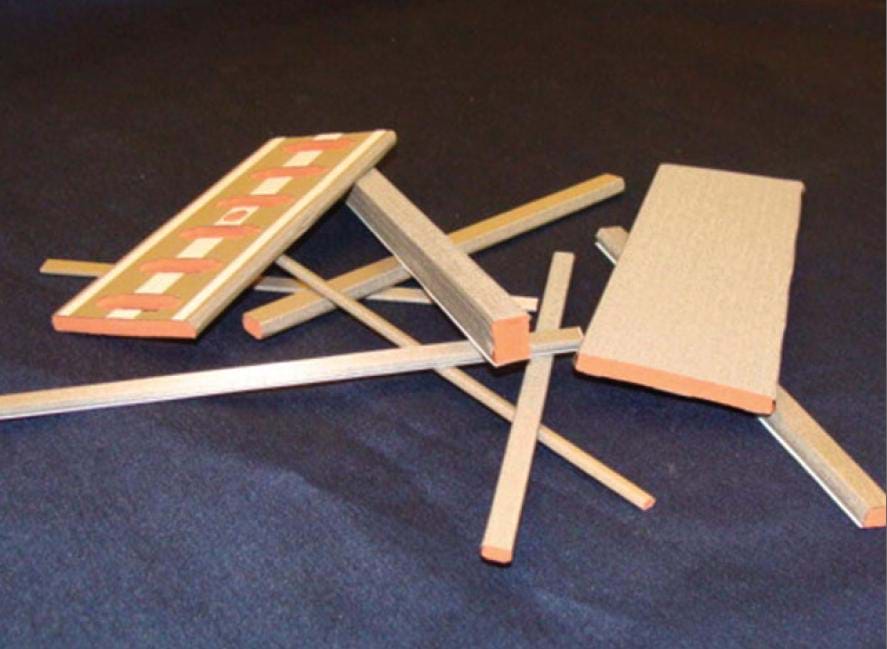

SOFT-SHIELD® 3700 allows the use of fabric over foam EMI/Grounding gasketing technology to be used in elevated temperature applications where continuous operating temperatures of 125o C or less are required. These cost effective, high performance gaskets with a UL 94-V0 flammability rating, provide EMI shielding solutions for the automotive, military and information technology market applications in higher temperature areas previously not possible with urethane foam based products. SS3700 can be rapid prototyped in many configurations and allows flexibility integrating it into new or current designs. The part will not require expensive tooling, virtually eliminating supply start up costs. The material is highly reliable ensuring years of positive performance. The nickel plated copper polyester rip stop fabric is resistant to oxidation thus delivering years of shielding and electrical grounding. Further, the characteristic low compression set of these foam based gaskets provides more reliable long term shielding, especially in applications where gasketed enclosure flanges are frequently opened and closed. Unlike alternative solutions such as metallic fingers, the material will not break or crack during handling thus improving production floor yields and avoiding the potential for a broken fragment falling onto a PCB. The material delivers shielding/grounding at a low deflection force over a large deflection range allowing for a relaxation of mechanical tolerances. SS3700 can accomodate up to 50% of it’s cross sectional height enabling it to accommodate a wide range of tolerance stack up and still shield. This reduces dimensional constraints and cost on all other components. Since they are offered with a conductive Pressure Sensitive Adhesive (PSA), installation of SOFT-SHIELD 3700 gaskets is made simple and can be delivered in several ways to the factory floor.
SOFT-SHIELD® 4000 Series gaskets offer a low cost EMI gasketing or grounding solution for commercial electronic systems. By combining the shielding effectiveness of metal foil along with the conformability afforded by a foam core construction, these gasket configurations ensure high shielding, and high reliability for both EMI gaskets and grounding panels such as those used for backplane I/O panel or connector gaskets. “Peel and Stick” grounding pad versions, along with the standard electrically conductive acrylic adhesive, solves common issues with inadvertent radiated electromagnetic radiation from ungrounded metal components on or near printed circuit boards. Further, the choice of foam softness in these gaskets can minimize the number of fasteners needed in an application. The gasket construction ensures system reliability by preventing loose fibers such as those released from some inferior varieties of low cost conductive fabric over foam gaskets. Exposed sharp edges that hinder manufacturing assembly operations such as from beryllium copper or stainless steel fingerstock EMI gaskets, are also eliminated by use of SOFT-SHIELD 4000.

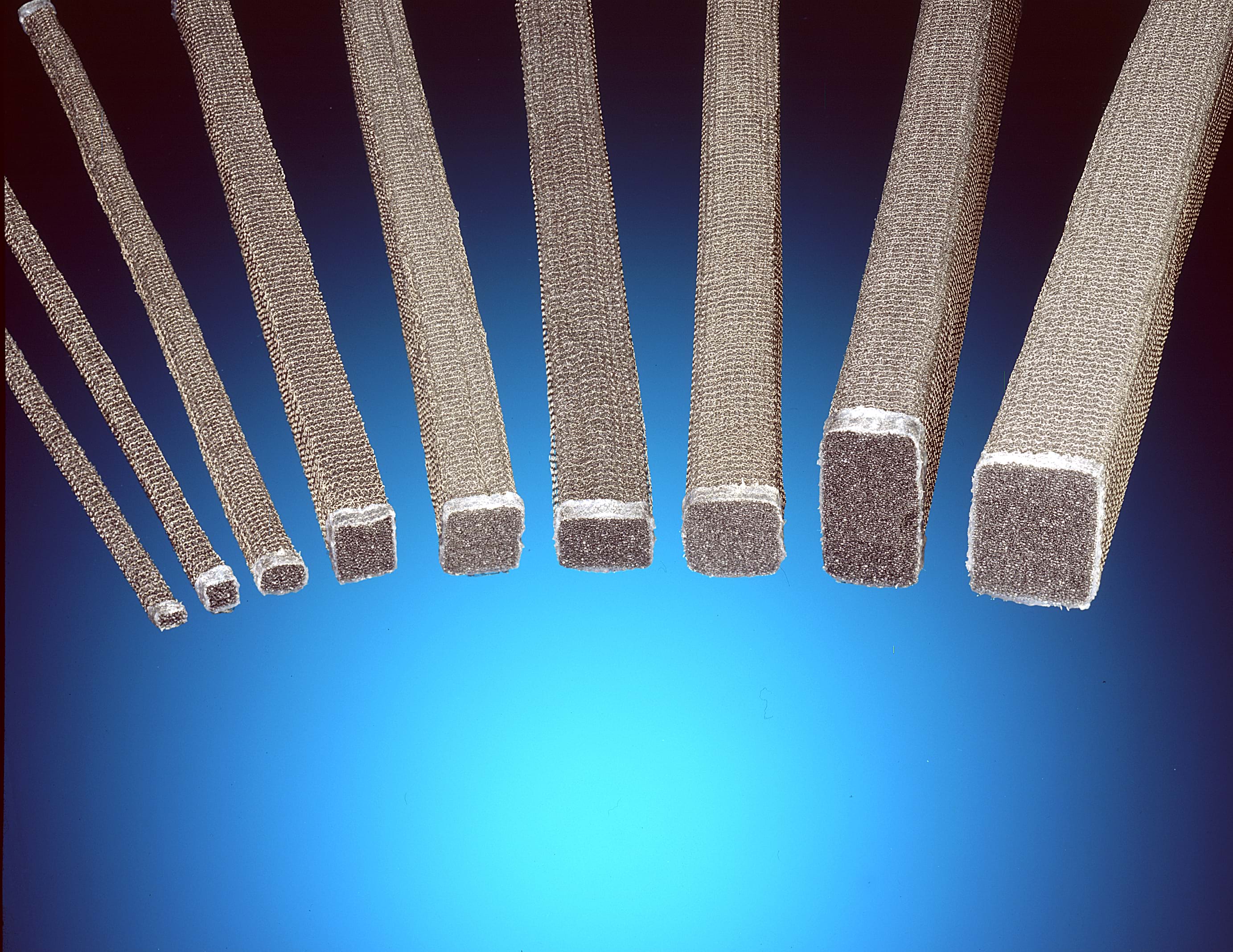

High durability, exceptionally soft easy-to-install SOFT-SHIELD® 1000 gaskets are specially designed for EMI shielding commercial electronic enclosures with low closure force requirements, where weather sealing is not a requirement. They are constructed with a distinctive combination of fine knitted wire mesh over a soft urethane foam core. Standard wire types are Monel* or Ferrex**. Standard construction is 0.0035 inch (0.09 mm) diameter wire with a density of 10-15 knit courses per inch of length (CPI).
SOFT-SHIELD® 2000 gaskets consist of silver-plated nylon yarn knitted over a highly compressible, thermoplastic EPDM foam core. Through a special treatment process, the yarn jacket is secured to the core. This self terminating outer layer eliminates the need for secondary termination efforts and metal particle debris associated with the cut ends of common wire mesh gaskets. SOFT-SHIELD 2000 gaskets are designed specifically for EMI shielding electronic enclosures where weather sealing is not a requirement. The low closure force characteristic of SOFT-SHIELD 2000 gaskets allows enclosures to be designed with fewer fasteners and/or thinner panels.
